REST API

Firewall Analyzerが生成するREST APIキーを使用し、サードパーティ製のITソフトウェアとの統合利用を実現します。

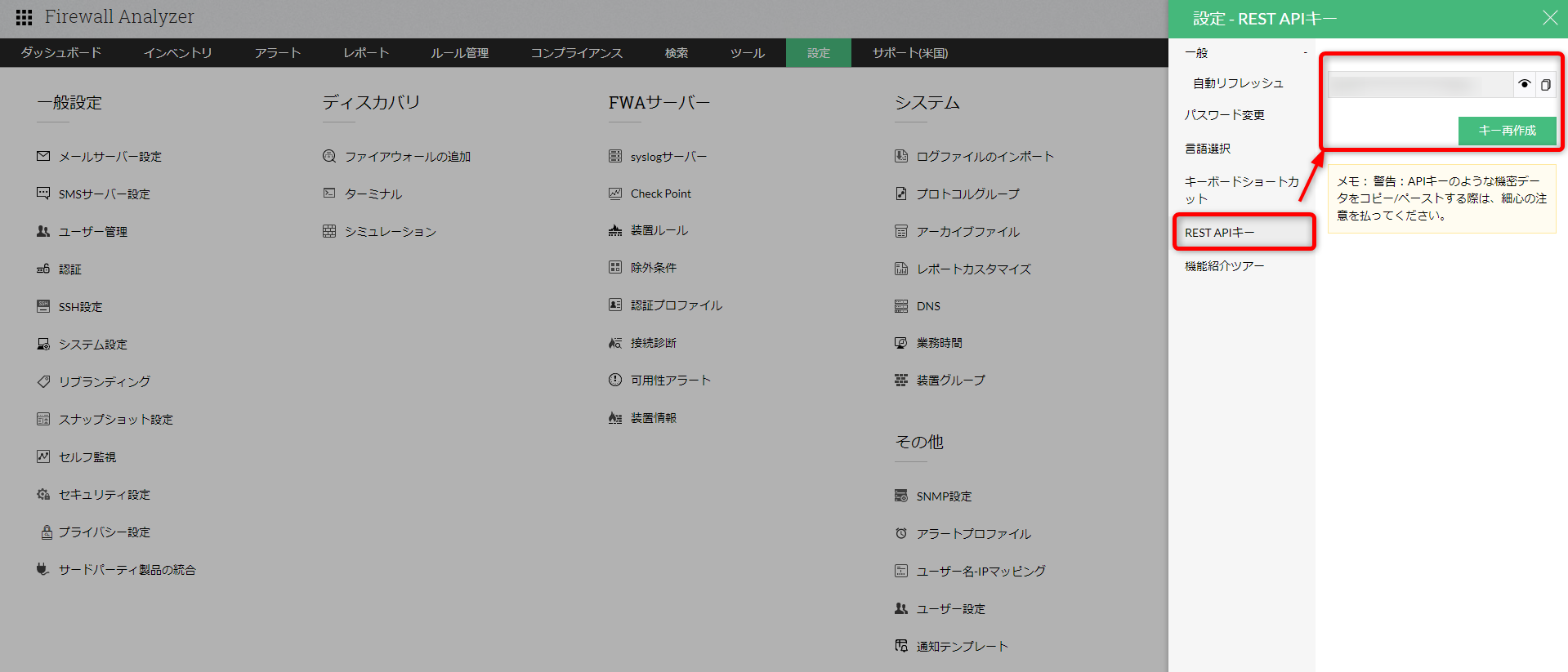

Firewall Analyzerにログイン後、画面右上の［歯車アイコン］→［REST APIキー］画面でAPIキーの確認および再作成を行います。

RESTAPIキー

APIリスト

ダッシュボード

REST API Method Description Parameters Sample URL
getWidgetsList GET Fetches all widgets available in the given dashboard apiKey - API Key to access your FirewallAnalyzer server.
dashboardName - dashboard ID. 		http://localhost:8060/api/json/dashboard/getWidgetsList?apiKey=081c9ac51ba16ab061d5efee583dcd2f&dashboardName=dashboardoverview
getWidgetData GET Displays the data present in the given widget apiKey - API Key to access your FirewallAnalyzer server.
widgetID - Widget ID 		http://localhost:8060/api/json/dashboard/getWidgetData?apiKey=83155f195334a19df5e58a8a33a6f804&widgetID=255
getDashboardList GET Fetches all available dashboards apiKey - API Key to access your Firewall Analyzer server. http://localhost:8060/api/json/dashboard/getDashboardList?apiKey=081c9ac51ba16ab061d5efee583dcd2f
getReportData GET To get the data for the reports. reportName - Name of the report.
RBBNAME - Name of the report Building block.
reportParams - Parameters in the report(in json object format).
type - Type of the report.
_search - Whether search is done or not.
nd -
rows - No of rows.
page - Page number
sortByColumn - Based on which column is the data sorted.
sortByType - Whether the sorting is in ascending order or descending order.
snapType - Type of the snapshot.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
userLocale - The locale of the user.
pdfSnapAssID - The snapShot association ID for the widget.
value - To determine the drilldown.
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email 		http://localhost:8060/api/json/fwareport/getReportData?reportName=FTP+Protocol+Group+Top+Hosts+-+Sent&reportParams=%7B%22applyTimeCriteria%22%3A%22true%22%2C%22wrapperType%22%3A%22table%22%2C%22layout%22%3A%221%22%2C%22isRptTab%22%3A%22true%22%2C%22resolvedns%22%3Afalse%2C%22reportId%22%3A%223%22%2C%22timeFrame%22%3A%22today%22%2C%22linkingRBBG%22%3A31%2C%22rowCount%22%3A%225%22%7D&apiKey=ecf7691a575255636e2c28bba73ae213
getCompleteData GET To get the complete report and other drilldown related datas. reportName - Name of the report.
RBBNAME - Name of the report building block.(eg : Top Protocols for Sender)
reportParams - The parameters for the report.
type - Type of the report.
_search - Whether the report is based on search or not.
nd -
rows - Total number of rows.
page - Total number of pages.
sortByColumn - The column name based on which sorting is done.
sortByType - Whether the sorting is done in ascending order or descending order.
timeFrame - The timeframe for which the report has been selected.
startDate - The start date and time for the report generated.
endDate - The end date and time for the report generated.
pdf - Type of the report generated.
resolvedns - Whether the dns has been resolved or not.
wrapperType - Type of the wrapper used.
applyTimeCriteria - Whether the time criteria is applied or not.
rid - Resource ID.
selColId - Selected Collector ID.
snapType - Type of the snapshot taken.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
reportSubTitle - SubTitle for the report.
userLocale - The locale of the user.
expand - Whether it is expanded or not.
pdfSnapAssID - The snapShot association ID for the widget.
value - To determine the drilldown.
url - Url of the requet.
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email
ifCrit - Interface Criteria
pGroup - Protocol Group
ATTACK - Attack parameters.
clientType - Type of the client
bwUsageType - Bandwidth Usage Type.
eventType - Type of the event. 		http://localhost:8060/api/json/fwareport/getCompleteData?reportParams=%7B%22RBBNAME%22%3A%22Top+Protocols+for+Sent+Protocol+Group%22%2C%22rid%22%3A%22all%22%2C%22value%22%3A%22Unassigned%22%2C%22applyTimeCriteria%22%3A%22true%22%2C%22resolvedns%22%3Afalse%2C%22timeFrame%22%3A%22today%22%7D&_search=false&nd=1547044166668&rows=50&page=1&sortByColumn=Starton&sortByType=desc&apiKey=ecf7691a575255636e2c28bba73ae213
showWidgets GET Display all available widgets in a dashboard apiKey - API Key to access your Firewall Analyzer server. http://localhost:8060/api/json/dashboard/showWidgets?apiKey=081c9ac51ba16ab061d5efee583dcd2f
listCCTVView GET Lists all the CCTV views apiKey - API Key to access your Firewall Analyzer server. http://localhost:8060/api/json/dashboard/listCCTVView?apiKey=081c9ac51ba16ab061d5efee583dcd2f
getDashBoardsForCCTV GET Get dashboards for the given CCTV view apiKey - API Key to access your Firewall Analyzer server.
cctvID - cctv ID.		 http://localhost:8060/api/json/dashboard/getDashBoardsForCCTV?apiKey=081c9ac51ba16ab061d5efee583dcd2f&cctvID=1
getCCTVView GET Gets CCTV view widgets/dashboards apiKey - API Key to access your Firewall Analyzer server.
cctvID - cctv ID.		 http://localhost:8060/api/json/dashboard/getCCTVView?apiKey=081c9ac51ba16ab061d5efee583dcd2f&cctvID=1

インベントリ

REST API Method Description Parameters Sample URL
getFWAInterfaceBandwidthData GET To get the interface/device bandwidth data interfaceID - Interface id
rid - resource id
resType - Resource Type
graphType - Type of graph
graphUnit - Unit of the graph
pdf - whether it is pdf or not
reportName - Name of the reports
startDate - Starting time
endDate - Ending time
expand - Whether it is expanded view or not
snapType - Type of the snapshot.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
userLocale - The locale of the user.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget. 		http://localhost:8060/api/json/v2/livetraffic/getFWAInterfaceBandwidthData?interfaceID=25&graphType=bothInAndOut&graphUnit=Kbps&pdf=pdf&reportName=today&apiKey=ecf7691a575255636e2c28bba73ae213
getInterfaceList GET Get the list of the interfaces advancedFilters - Set of filters chosen.
rid - resource id
timeFrame - selected timeFrame
startDate - Start date according to the time period selected.Format is yyyy/mm/dd hh:mm
endDate - End date according to the time period selected. Format is yyyy/mm/dd hh:mm 		http://localhost:8060/api/json/livetraffic/getInterfaceList?rid=2&apiKey=ecf7691a575255636e2c28bba73ae213
getUnknownIdentifiers GET To get unknown protocols from the device. reportId - Id of the report.
applyTimeCriteria - The time period selected.
startDate - Start date according to the time period selected.Format is yyyy/mm/dd hh:mm
endDate - End date according to the time period selected. Format is yyyy/mm/dd hh:mm
hitsCount - Number of hits.
value - Value of the Identifiers. 		http://localhost:8060/api/json/fwadashboard/getUnknownIdentifiers?reportId=1202&applyTimeCriteria=true&startDate=2018-12-03+10%3A09&endDate=2018-12-03+11%3A09&hitsCount=0&value=Fortigate1-FW&apiKey=ecf7691a575255636e2c28bba73ae213
getFWAInventoryDeviceList GET To get the device list in inventory tab. vendor - Vendor for the devices.
resType - Type of the devices added.
advancedFilters - Any filters that are added.
timeFrame - Timeframe selected
startDate - Value for the starting time.
endDate - Value for the ending time. 		http://localhost:8060/api/json/fwainventory/getFWAInventoryDeviceList?advancedFilters=%7B%7D&timeFrame=today&apiKey=ecf7691a575255636e2c28bba73ae213
getDeviceDetails GET To get the details for the selected device rid - Resource ID http://localhost:8060/api/json/fwainventory/getDeviceDetails?rid=1&apiKey=ecf7691a575255636e2c28bba73ae213
getFWAInventoryTabs GET To get the tabs in the inventory timeFrame - Selected timeframe.
startDate - Starting date for the selected timeframe.
endDate - Ending date for the selected timeframe 		http://localhost:8060/api/json/fwainventory/getFWAInventoryTabs?timeFrame=7Days&apiKey=ecf7691a575255636e2c28bba73ae213
getResourcesList GET To get the list of resources. NIL http://localhost:8060/api/json/fwainventory/getResourcesList?apiKey=ecf7691a575255636e2c28bba73ae213
getCloudTabList GET To get the details for the cloud tab in inventory page. advancedFilters - The selected filters in the cloud page.
timeFrame - Selected timeframe.
startDate - Starting Date for the selected timeframe.
endDate - Ending date for the selected timeframe. 		http://localhost:8060/api/json/fwainventory/getCloudTabList?advancedFilters=%7B%7D&timeFrame=7Days&apiKey=ecf7691a575255636e2c28bba73ae213
getUserTabList GET To get the details for the users tab in inventory page. advancedFilters - The selected filters in the users page.
timeFrame - Selected Timeframe
startDate - Starting date for the selected timeframe.
endDate - Ending date for the selected timeframe. 		http://localhost:8060/api/json/fwainventory/getUserTabList?advancedFilters=%7B%7D&timeFrame=7Days&apiKey=ecf7691a575255636e2c28bba73ae213
getRuleTabList GET To get the details for the rules tab in inventory page. advancedFilters - The selected filters in the Rules page.
timeFrame - Selected Timeframe
startDate - Starting date for the selected timeframe.
endDate - Ending date for the selected timeframe. 		http://localhost:8060/api/json/fwainventory/getRuleTabList?advancedFilters=%7B%7D&timeFrame=7Days&apiKey=ecf7691a575255636e2c28bba73ae213
getCompleteData** GET To get the complete report and other drilldown related datas. reportName - Name of the report.
RBBNAME - Name of the report building block.(eg : Top Protocols for Sender)
reportParams - The parameters for the report.
type - Type of the report.
_search - Whether the report is based on search or not.
nd -
rows - Total number of rows.
page - Total number of pages.
sortByColumn - The column name based on which sorting is done.
sortByType - Whether the sorting is done in ascending order or descending order.
timeFrame - The timeframe for which the report has been selected.
startDate - The start date and time for the report generated.
endDate - The end date and time for the report generated.
pdf - Type of the report to be generated.
resolvedns - Whether the dns has been resolved or not.
wrapperType - Type of the wrapper used.
applyTimeCriteria - Whether the time criteria is applied or not.
rid - Resource ID. 		http://localhost:8060/api/json/fwareport/getCompleteData?reportParams=%7B%22RBBNAME%22%3A%22Top+Protocols+for+Sent+Protocol+Group%22%2C%22rid%22%3A%22all%22%2C%22value%22%3A%22Unassigned%22%2C%22applyTimeCriteria%22%3A%22true%22%2C%22resolvedns%22%3Afalse%2C%22timeFrame%22%3A%22today%22%7D&_search=false&nd=1547044166668&rows=50&page=1&sortByColumn=Starton&sortByType=desc&apiKey=ecf7691a575255636e2c28bba73ae213

getDrilldownReportList** GET To get the drill down details for the reports. url - url for the drill down.
pGroup - protocol group
clientType - Type of the client
bwUsageType - Bandwidth usage type.
eventType - Type of the event.
reportParams - The parameters to be added to generate the drill down report. 		http://localhost:8060/api/json/fwareport/getDrilldownReportList?pGroup=FTP&reportParams=%7B%22linkingRBBG%22%3A30%2C%22value%22%3A%22172.16.2.119%22%2C%22reportId%22%3A%2265%22%2C%22timeFrame%22%3A%22today%22%7D&apiKey=ecf7691a575255636e2c28bba73ae213
getDeviceSummary GET To get the summary of the device. rid - Resource ID
pdf - Type of the report being exported.
snapshotName - Name of the snapshot.
snapType - Type of the snapshot.
timeFrame - Time frame selected for which the data is shown.
startDate - The starting date from which the data is displayed.
endDate - The ending date upto which the data is displayed.
speedType - Type of the speed unit which is selected.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
userLocale - The locale of the user.
pdfSnapAssID - The snapShot association ID for the widget.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget. 		http://localhost:8060/api/json/fwaglobal/getDeviceSummary?apiKey=ecf7691a575255636e2c28bba73ae213&rid=1&snapshotName=FWAFirewall&snapType=FirewallDevice

アラート

REST API Method Description Parameters Sample URL
listAlarms GET To list the alarms that have been raised. deviceName - name of the device.
severity - The severity of the alarm raised.
category - The category selected based on which the alarms are displayed.
period - Alarms raised for the particular time period.
entity - The entity or profile for which the alarms are raised.
alarmCode - Alarm code specified for the alarm.
eventType - Type of the event
alertType - Type of the alarm.
fromTime - The starting time range that is selected.
toTime - The Ending time range that is selected.
isFromIPSLA - To check whether the alarm is raised from IPSLA module.
monitorType - Type of the monitor for which the alarm has been raised.
probeId - The Id of the probe.
limit - Limit for the number of alarms.
pageNumber - The current page number that is shown.
isAcknowledge - Has the alarm been acknowledged or not.
sortByCategory- The alarms are sorted based on category or not.
page - The current page number that is displayed.
rows - Maximum number of  alarms displayed per page.
isNotes - Whether any notes is present for the alarm or not.
_search - Whether search action is performed or not.
nd -
probeName - Name of the probe.
fromNFA - Whether the alarm has been raised from NFA module.
isVirtualEntity - Whether the entity is virtual or not.
showHWAlarms- Whether HWalarms is enabled or not.
filters - The search string that is given when performing search action.
sortByColumn - Column based on which the alarms are sorted.
sortByType - The sort type whether the alarms are displayed in ascending or descending order.
collOpt - The collector for the alarm has been raised.
isFluidic - Whether the alarm is of type fluidic or not.
isWebclient - Whether the alarm has been raised by webclient or not.
timeFrame - The time period selected for which the alarms have been raised.
DateRange - The Dates selected for which the alarms have been raised. 		http://localhost:8060/api/json/alarm/listAlarms?isFluidic=true&isWebclient=true&alertType=ActiveAlarms&sortByCategory=true&isNotes=true&_search=false&nd=1557835535125&rows=100&page=1&sortByColumn=modTime&sortByType=desc&apiKey=ecf7691a575255636e2c28bba73ae213
alarmProperties GET To get the properties for the alarm entity - Name of the entity/profile for which the alarm has been raised.
alarmSpecific - Whether it is alarm specific or not.
deviceID - The ID of the device for which the alarm has been raised. 		http://localhost:8060/api/json/alarm/alarmProperties?entity=testalert_5&apiKey=ecf7691a575255636e2c28bba73ae213
getAlertDetails GET To get the alarm details auditId - Id of the alarm.
Alert_type - Type of the alert.
entity - Name of the entity/profile for which the alarm was raised. 		http://localhost:8060/api/json/fwaalarms/getAlertDetails?auditId=167&Alert_type=Normal%20Alert&entity=cxz_328&apiKey=ecf7691a575255636e2c28bba73ae213
getAlarmActions GET To get the list of actions for the particular alarm entity - Name of the entity/profile for which the alarm was raised. http://localhost:8060/api/json/alarm/getAlarmActions?isFluidic=true&entity=testalert_5&apiKey=ecf7691a575255636e2c28bba73ae213
addNotes POST To add the required notes for an alarm entity - Name of the entity/profile for which the alarm was raised.
notes - The notes that have been added for the alarm.
type - Type of the alarm for which the note has been added.
isFluidic - Whether the alarm is fluidic or not. 		http://localhost:8060/api/json/alarm/addNotes?isFluidic=true&apiKey=ecf7691a575255636e2c28bba73ae213

レポート（カスタムレポート）

REST API Method Description Parameters Sample URL
getReportProfiles GET To get the report profiles configured. NIL http://localhost:8060/api/json/fwareporttab/getReportProfiles?apiKey=ecf7691a575255636e2c28bba73ae213
getMyReportData GET To get the data of specific report. reportId - Report ID
rbbgId - reportbuildingblock group ID.
rType - Report type 		http://localhost:8060/api/json/fwareporttab/getMyReportData?reportId=3&rbbgId=65&rType=MyRep&apiKey=ecf7691a575255636e2c28bba73ae213
getDrilldownReportList GET To get the drill down details for the reports. url - url for the drill down.
pGroup - protocol group
clientType - Type of the client
bwUsageType - Bandwidth usage type.
eventType - Type of the event.
reportParams - The parameters to be added to generate the drill down report. 		http://localhost:8060/api/json/fwareport/getDrilldownReportList?pGroup=FTP&reportParams=%7B%22linkingRBBG%22%3A30%2C%22value%22%3A%22172.16.2.119%22%2C%22reportId%22%3A%2265%22%2C%22timeFrame%22%3A%22today%22%7D&apiKey=ecf7691a575255636e2c28bba73ae213
getCompleteData GET To get the complete report and other drilldown related datas. reportName - Name of the report.
RBBNAME - Name of the report building block.(eg : Top Protocols for Sender)
reportParams - The parameters for the report.
type - Type of the report.
_search - Whether the report is based on search or not.
nd -
rows - Total number of rows.
page - Total number of pages.
sortByColumn - The column name based on which sorting is done.
sortByType - Whether the sorting is done in ascending order or descending order.
timeFrame - The timeframe for which the report has been selected.
startDate - The start date and time for the report generated.
endDate - The end date and time for the report generated.
pdf - Type of the report generated.
resolvedns - Whether the dns has been resolved or not.
wrapperType - Type of the wrapper used.
applyTimeCriteria - Whether the time criteria is applied or not.
rid - Resource ID.
selColId - Selected Collector ID.
snapType - Type of the snapshot taken.
title1 - Type of the device.
value1 - Name of the device.
title2 - Type of the interface.
value2 - Name of the interface.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
reportSubTitle - SubTitle for the report.
userLocale - The locale of the user.
expand - Whether it is expanded or not.
pdfSnapAssID - The snapShot association ID for the widget.
value - To determine the drilldown.
url - Url of the requet.
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email
ifCrit - Interface Criteria
pGroup - Protocol Group
ATTACK - Attack parameters.
clientType - Type of the client
bwUsageType - Bandwidth Usage Type.
eventType - Type of the event. 		http://localhost:8060/api/json/fwareport/getCompleteData?reportParams=%7B%22RBBNAME%22%3A%22Top+Protocols+for+Sent+Protocol+Group%22%2C%22rid%22%3A%22all%22%2C%22value%22%3A%22Unassigned%22%2C%22applyTimeCriteria%22%3A%22true%22%2C%22resolvedns%22%3Afalse%2C%22timeFrame%22%3A%22today%22%7D&_search=false&nd=1547044166668&rows=50&page=1&sortByColumn=Starton&sortByType=desc&apiKey=ecf7691a575255636e2c28bba73ae213

レポート（FWAレポート）

REST API Method Description Parameters Sample URL
getReportData GET To get the data for the reports. reportName - Name of the report.
RBBNAME - Name of the report Building block.
reportParams - Parameters in the report(in json object format).
type - Type of the report.
_search - Whether search is done or not.
nd -
rows - No of rows.
page - Page number
sortByColumn - Based on which column is the data sorted.
sortByType - Whether the sorting is in ascending order or descending order.
snapType - Type of the snapshot.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
userLocale - The locale of the user.
pdfSnapAssID - The snapShot association ID for the widget.
value - To determine the drilldown.
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email 		http://localhost:8060/api/json/fwareport/getReportData?reportName=FTP+Protocol+Group+Top+Hosts+-+Sent&reportParams=%7B%22applyTimeCriteria%22%3A%22true%22%2C%22wrapperType%22%3A%22table%22%2C%22layout%22%3A%221%22%2C%22isRptTab%22%3A%22true%22%2C%22resolvedns%22%3Afalse%2C%22reportId%22%3A%223%22%2C%22timeFrame%22%3A%22today%22%2C%22linkingRBBG%22%3A31%2C%22rowCount%22%3A%225%22%7D&apiKey=ecf7691a575255636e2c28bba73ae213
getCompleteData GET To get the complete report and other drilldown related datas. reportName - Name of the report.
RBBNAME - Name of the report building block.(eg : Top Protocols for Sender)
reportParams - The parameters for the report.
type - Type of the report.
_search - Whether the report is based on search or not.
nd -
rows - Total number of rows.
page - Total number of pages.
sortByColumn - The column name based on which sorting is done.
sortByType - Whether the sorting is done in ascending order or descending order.
timeFrame - The timeframe for which the report has been selected.
startDate - The start date and time for the report generated.
endDate - The end date and time for the report generated.
pdf - Type of the report generated.
resolvedns - Whether the dns has been resolved or not.
wrapperType - Type of the wrapper used.
applyTimeCriteria - Whether the time criteria is applied or not.
rid - Resource ID.
selColId - Selected Collector ID.
snapType - Type of the snapshot taken.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
reportSubTitle - SubTitle for the report.
userLocale - The locale of the user.
expand - Whether it is expanded or not.
pdfSnapAssID - The snapShot association ID for the widget.
value - To determine the drilldown.
url - Url of the requet.
mail - To check if mail option is added in widget.
csv - To check if csv option is added in widget.
exportFWAMail - Whether to export the mail or not.
fromEmailid - Sender email ID
toEmailid - Receiver email ID
emailSubject - Subject for the email
message - message for the email
ifCrit - Interface Criteria
pGroup - Protocol Group
ATTACK - Attack parameters.
clientType - Type of the client
bwUsageType - Bandwidth Usage Type.
eventType - Type of the event. 		http://localhost:8060/api/json/fwareport/getCompleteData?reportParams=%7B%22RBBNAME%22%3A%22Top+Protocols+for+Sent+Protocol+Group%22%2C%22rid%22%3A%22all%22%2C%22value%22%3A%22Unassigned%22%2C%22applyTimeCriteria%22%3A%22true%22%2C%22resolvedns%22%3Afalse%2C%22timeFrame%22%3A%22today%22%7D&_search=false&nd=1547044166668&rows=50&page=1&sortByColumn=Starton&sortByType=desc&apiKey=ecf7691a575255636e2c28bba73ae213
getDrilldownReportList GET To get the drill down details for the reports. url - url for the drill down.
pGroup - protocol group
clientType - Type of the client
bwUsageType - Bandwidth usage type.
eventType - Type of the event.
reportParams - The parameters to be added to generate the drill down report. 		http://localhost:8060/api/json/fwareport/getDrilldownReportList?pGroup=FTP&reportParams=%7B%22linkingRBBG%22%3A30%2C%22value%22%3A%22172.16.2.119%22%2C%22reportId%22%3A%2265%22%2C%22timeFrame%22%3A%22today%22%7D&apiKey=ecf7691a575255636e2c28bba73ae213
getReportList GET To get the report list. reportGroup - Report Group.
rid - Resource ID.
reportName - Name of the report.
reportId - Id for the report.
rtab - Raw tab or not.
rowCount - Number of rows to be displayed.
timeFrame - Time frame that has been selected.
startDate - Starting date from which the data is shown.
endDate - Ending date upto which the data is shown.
isRptTab - Whether it is report tab or not.
resolvedns - Whether resolve dns is enabled or not.
wrapperType - Type of the wrapper.
applyTimeCriteria - Whether the time criteria is applied or not.
title1 - Type of the tab like device/cloud etc.
value1 - Name of the device/cloud etc.
title2 - Type of the interface/rule etc.
value2 - Name of the interface/rule etc.
exportFWAV2WidData -
Exporting v2 widget data or not.
pdfReqFrom - From where the req has been raised.
reportTitle - Title for the report.
userLocale - The locale of the user.
type - Type of the report.
_search - Whether the report is based on search or not.
nd -
rows - Total number of rows.
page - Total number of pages.
sortByColumn - The column name based on which sorting is done.
sortByType - Whether the sorting is done in ascending order or descending order.
headerText1 - Type of the device/report etc.
headerText2 - Type of the device/report/widget etc.
headerVal1 - Value of the device/report etc.
headerVal2 - Value of the device/report/widget etc.
value - Value of the parameters for the drilldown report.
layout - Layout for the report
series - Series of the reports
exportFWAMail - Whether mail is to be sent or not.
fromEmailid - Sender Email address
toEmailid - Receiver Email address
emailSubject - Subject of the email
message - Message in the email

http://localhost:8060/api/json/fwareport/getReportList?reportGroup=65&rid=1&apiKey=ecf7691a575255636e2c28bba73ae213

レポート（スケジュールリスト）

REST API Method Description Parameters Sample URL
getFWAScheduleList GET To get the configured list of schedules. NIL http://localhost:8060/api/json/fwasettings/getFWAScheduleList?apiKey=ecf7691a575255636e2c28bba73ae213

レポート（レポートフィルター）

REST API Method Description Parameters Sample URL
getFilterList GET To get the list of filters already added. userId - User ID http://localhost:8060/api/json/fwareporttab/getFilterList?userId=1&apiKey=ecf7691a575255636e2c28bba73ae213
getProtoList** GET To get the list of protocols. NIL http://localhost:8060/api/json/fwareporttab/getProtoList?apiKey=ecf7691a575255636e2c28bba73ae213
getFilterDetails GET To get the filter details filterName  -  Name of the filter http://localhost:8060/api/json/fwareporttab/getFilterDetails?filterName=asd&apiKey=ecf7691a575255636e2c28bba73ae213

レポート（レポートタイプ）

REST API Method Description Parameters Sample URL
getAllReportList GET To get all reports list configured. frmRptType - is the page report type or not(true|false) http://localhost:8060/api/json/fwareporttab/getAllReportList?frmRptType=true&apiKey=ecf7691a575255636e2c28bba73ae213

コンプライアンス（ルール管理）

REST API Method Description Parameters Sample URL
getOverviewDetails GET To get Policy overview report names and selected device policy details and able to search across the reports DEVICEID - Firewall ID
policyID - policy id's
rbbName - rbbname
_search - boolean
nd - long
rows - long
page - long
sortByColumn - only alphabets
sortByType - only alphabets
filters - json object 		http://localhost:8060/api/json/fwacompliance/getpolicyOverview?DEVICEID=2&policyID=2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58&rbbName=Total+Rules&_search=true&nd=1557391515909&rows=20&page=1&sortByColumn=Starton&sortByType=desc&filters={"groupOp":"AND","rules":[{"field":"policyname","op":"bw","data":"dmz"}]}&apiKey=ecf7691a575255636e2c28bba73ae213
getpolicyOverview GET To get Policy data DEVICEID - Firewall ID
policyID - Policy ID (Comma separated number for cisco)
rbbName - Selected statictic report name 		http://localhost:8060/api/json/fwacompliance/getpolicyOverview?DEVICEID=601&policyID=320,321,322,323,324,325,326,327&rbbName=Total%20Rules&apiKey=ecf7691a575255636e2c28bba73ae213
getPolicyOptimization GET To get policy optimization data for selected device  DEVICEID - Firewall ID
anomalyType - Selected anomaly type 		http://localhost:8060/api/json/fwacompliance/getPolicyOptimization?DEVICEID=601&anomalyType=all&apiKey=ecf7691a575255636e2c28bba73ae213
getDeviceUnusedDetails GET To get Rule cleanup tab details and selected device unused rule data.
DEVICEID  - Firewall ID
startDate - From date
endDate - To date
repId  - Report id
 http://localhost:8060/api/json/fwacompliance/getDeviceUnusedDetails?DEVICEID=601&startDate=2019-01-23%2008:52&endDate=2019-01-23%2009:52&repId=1802&apiKey=ecf7691a575255636e2c28bba73ae213

コンプライアンス（コンプライアンス）

REST API Method Description Parameters Sample URL
changeWidgetView POST To show selected standard reports in UI
rID - Firewall ID
reportID - Report ID
displayName - Firewall display Name
deviceType - Firewall vendor
resourceName - Firewall Name
selectedWidgets -  Selected standard reports name separated by comma(ex:SANS, NIST, ISO, PCI DSS, NERC-CIP)
 http://localhost:8060/api/json/fwacompliance/changeWidgetView?apiKey=ecf7691a575255636e2c28bba73ae213
getComplianceDashboard GET To get standards page details and selected device data NIL http://localhost:8060/api/json/fwacompliance/getComplianceDashboard?apiKey=ecf7691a575255636e2c28bba73ae213

コンプライアンス（変更管理）

REST API Method Description Parameters Sample URL
getDeviceChanges GET To get Change Management Report data
DEVICEID -  Firewall ID
DateRange - Custom date range enabled or disabled value
timeFrame - Predefined time range
startDate - Start date of custom range
endDate - End date of custom range
applyTimeCriteria*** -  Time criteria identifier
 http://localhost:8060/api/json/fwacompliance/getDeviceChanges?DEVICEID=301&DateRange=true&startDate=2019-01-20%2000:00&endDate=2019-01-23%2005:54&apiKey=ecf7691a575255636e2c28bba73ae213
getChangeMgmtSchDetail GET To get change management schedule details. rID - Firewall ID
 		 http://localhost:8060/api/json/fwacompliance/getChangeMgmtSchDetail?rID=601&apiKey=ecf7691a575255636e2c28bba73ae213
getChangeMgmtNotiDetail GET To get change management notification details. rID - Firewall ID http://localhost:8060/api/json/fwacompliance/getChangeMgmtNotiDetail?rID=601&apiKey=ecf7691a575255636e2c28bba73ae213

コンプライアンス（一般）

REST API Method Description Parameters Sample URL
getDDIDResourcesInfo GET To get Firewall list and mark first device which configured in Device rule listType - Type to get data for selected device (ruleDeviceList) http://localhost:8060/api/json/fwacompliance/getDDIDResourcesInfo?listType=ruleDeviceList&apiKey=ecf7691a575255636e2c28bba73ae213

検索

REST API Method Description Parameters Sample URL
getSearchTabList get to get search criteria sMode  -             Search type
selectedDevices - Selected devices list
criteria - Search criterias
matchStatus - match condition (or & and) 		http://localhost:8060/api/json/fwasearch/getSearchTabList?sMode=agg&selectedDevices=127.0.0.1%2CCiscoVPN&criteria=%5B%7B%22key%22%3A%22Protocol%22%2C%22operator%22%3A%22isn%27t%22%2C%22value%22%3A%22null%22%7D%5D&matchStatus=OR&apiKey=ecf7691a575255636e2c28bba73ae213
getIndexInfo get To get Raw settings configuration details NIL http://localhost:8060/api/json/fwaglobal/getIndexInfo?apiKey=ecf7691a575255636e2c28bba73ae213
getIndexInfo get To update Raw settings configuration details mode - save
rawSearch - enabled or disabled
indexAll-  index traffic & security logs (true or false)
indexSecurity - index security logs only (true or false) 		http://localhost:8060/api/json/fwaglobal/getIndexInfo?mode=save&rawSearch=enabled&indexAll=true&indexSecurity=false&apiKey=ecf7691a575255636e2c28bba73ae213
getRawColList get To get Raw search result columns based on search option NIL http://localhost:8060/api/json/fwasearch/getRawColList?apiKey=ecf7691a575255636e2c28bba73ae213
getRawData get  To get Raw serach result selectedDevices - Selected firewall/proxy devices with comma separator
criteria - Search criteria
matchStatus-  match condition (or & and)
type - Result type (formatted or raw)
completeData - Default row count identifier (always true)
reportParams - Time criteria and index details
logFormat - Used to get result columns based on serach type (s or u or proxy)
dataType -  Serach type identifier
log - Serach criteria for Database update
sLogType - Serach log option number with comma separated
(1 for selected option and 0 for non-selected)
_search - client generated value (always false)
nd - number
rows - row count
page - Page number
sidx - Sort index (empty value)
sord - Sort type (asc)
  		http://localhost:8060/api/json/fwasearch/getRawData?selectedDevices=FGT1000R&criteria=[{"key":"Protocol","operator":"isn't","value":"null"},{"key":"Source","operator":"starts+with","value":"192.168"}]&matchStatus=AND&type=formatted&completeData=true&reportParams={"applyTimeCriteria":"true","startDate":"2019-01-22+01:00","endDate":"2019-01-22+15:59","partialCountDetails":"335_-2","startIndex":"0","totalPoint":"0_0_0","endPoint":"2147483647_0","basicCount":"335","basicDocIdArr":"6707_6502","storedPoint":"-1_-1","endIndex":"0","startPoint":"2147483647_0"}&logFormat=s&dataType=raw&log=&sLogType=1,1,1,1,1&_search=false&nd=1548153010968&rows=500&page=1&sidx=&sord=asc&apiKey=ecf7691a575255636e2c28bba73ae213

設定（syslogサーバー）

REST API Method Description Parameters Sample URL
getSyslogServerTableData GET To view the list of syslog servers that have been configured NIL http://localhost:8060/api/json/fwasettings/getSyslogServerTableData?apiKey=ecf7691a575255636e2c28bba73ae213
getLivePacketCount GET To get the number of packets of data received through the syslogs configured. NIL http://localhost:8060/api/json/fwaglobal/getLivePacketCount?apiKey=ecf7691a575255636e2c28bba73ae213

設定（接続診断）

REST API Method Description Parameters Sample URL
getFWAResourceDetails GET To get the resources of type cisco or netscreen. NIL http://localhost:8060/api/json/fwasettings/getFWAResourceDetails?apiKey=ecf7691a575255636e2c28bba73ae213

設定（可用性アラート）

REST API Method Description Parameters Sample URL
getFWAAvailabilityAlert GET To get the list of availability alerts already configured. NIL http://localhost:8060/api/json/fwasettings/getFWAAvailabilityAlert?apiKey=ecf7691a575255636e2c28bba73ae213

設定（装置情報）

REST API Method Description Parameters Sample URL
getFWDeviceDetails GET To get the device details such as Unsupported logs received, supported logs received, schedules executed. NIL http://localhost:8060/api/json/fwasettings/getFWDeviceDetails?apiKey=ecf7691a575255636e2c28bba73ae213
getUnparsedLogsSummary GET To get the list of unparsed records. NIL http://localhost:8060/api/json/fwasettings/getUnparsedLogsSummary?apiKey=ecf7691a575255636e2c28bba73ae213
getScheduleExecutionSummary GET To get the list of schedules that have been executed NIL http://localhost:8060/api/json/fwasettings/getScheduleExecutionSummary?apiKey=ecf7691a575255636e2c28bba73ae213

設定（アーカイブファイル）

REST API Method Description Parameters Sample URL
getArchiveSettingsTableData GET To get the list of files that have been archived. NIL http://localhost:8060/api/json/fwasettings/getArchiveSettingsTableData?apiKey=ecf7691a575255636e2c28bba73ae213
getArchiveSettingDBValues POST To get and edit the archive setting values. NIL http://localhost:8060/api/json/fwasettings/getArchiveSettingDBValues?apiKey=ecf7691a575255636e2c28bba73ae213

設定（レポートカスタマイズ）

REST API Method Description Parameters Sample URL
getResourcesTableInfo** GET To get the list of devices added in the fwanalyzer NIL http://localhost:8060/api/json/fwaglobal/getResourcesTableInfo?apiKey=ecf7691a575255636e2c28bba73ae213
configureDefaultReports POST To configure the default reports to be listed for the firewalls resId - Resource ID.(eg : 1)
selectedReports - The reports that are selected for the device.(comma seperated values).(61,62,63,64,65) 		http://localhost:8060/api/json/fwasettings/configureDefaultReports?apiKey=ecf7691a575255636e2c28bba73ae213

設定（装置グループ）

REST API Method Description Parameters Sample URL
getDeviceGroup GET To get the device groups that have been configured. NIL http://localhost:8060/api/json/v2/fwadashboard/getDeviceGroup?apiKey=ecf7691a575255636e2c28bba73ae213
getResourcesList GET To get the resources list. cid - collector id http://localhost:8060/api/json/fwaenterprise/getResourcesList?selColId=1&apiKey=ecf7691a575255636e2c28bba73ae213

設定（データ保存）

REST API Method Description Parameters Sample URL
getDataStorageConfigData GET To get the configured data storage for database and archive. NIL http://localhost:8060/api/json/fwasettings/getDataStorageConfigData?apiKey=ecf7691a575255636e2c28bba73ae213

設定（ライセンス管理）

REST API Method Description Parameters Sample URL
getFWAInventoryDeviceList GET To get the list of devices added in the fwanalyzer NIL http://localhost:8060/api/json/fwainventory/getFWAInventoryDeviceList?apiKey=ecf7691a575255636e2c28bba73ae213

設定（アーカイブ暗号化）

REST API Method Description Parameters Sample URL
getArchiveSettingDBValues GET To get the archive setting values currently configured. NIL http://localhost:8060/api/json/fwasettings/getArchiveSettingDBValues?apiKey=ecf7691a575255636e2c28bba73ae213

設定（シミュレーション）

REST API Method Description Parameters Sample URL
removeLearnings POST To remove the device when deletion operation is performed. resourcesList - List of resources removed.(eg : 127.0.0.1) http://localhost:8060/api/json/fwasettings/removeLearnings?apiKey=ecf7691a575255636e2c28bba73ae213

設定（プロトコルグループ）

REST API Method Description Parameters Sample URL
getProtocolGroupsTableData GET To get the protocol group data pgName - Name of the page. http://localhost:8060/api/json/fwasettings/getProtocolGroupsTableData?pgName=All&apiKey=ecf7691a575255636e2c28bba73ae213

設定（業務時間）

REST API Method Description Parameters Sample URL
getWorkingHourData GET To get the configured working hour data. NIL http://localhost:8060/api/json/fwasettings/getWorkingHourData?apiKey=ecf7691a575255636e2c28bba73ae213

設定（DNS）

REST API Method Description Parameters Sample URL
getManualDnsMappingData GET To get the configured Dns mapping data. NIL http://localhost:8060/api/json/fwasettings/getManualDnsMappingData?apiKey=ecf7691a575255636e2c28bba73ae213
getDnsResolveConfigData GET To get the configured resolve config data. NIL http://localhost:8060/api/json/fwasettings/getDnsResolveConfigData?apiKey=ecf7691a575255636e2c28bba73ae213

設定（イントラネット）

REST API Method Description Parameters Sample URL
getIntranetTableData** GET To get the data in intranet settings and exclude hosts. selectedtab - The tab that is selected(intranet/exclude hosts) http://localhost:8060/api/json/fwasettings/getIntranetTableData?selectedtab=Intranet&apiKey=ecf7691a575255636e2c28bba73ae213
getDeviceIntranetSettings** GET To get the intranet settings for the device selectedTab - The tab that is selected(intranet/exclude hosts)
devName - Name of the device.
devId - Id of the device 		http://localhost:8060/api/json/fwasettings/getDeviceIntranetSettings?devId=-1&selectedTab=Intranet&apiKey=ecf7691a575255636e2c28bba73ae213
getResourcesTableInfo** GET To get the list of devices added in the fwanalyzer NIL http://localhost:8060/api/json/fwaglobal/getResourcesTableInfo?apiKey=ecf7691a575255636e2c28bba73ae213

設定（リポジトリ）

REST API Method Description Parameters Sample URL
handleCloudRepositoryChanges GET To get the changes that are done in the repository action - The action that is performed(add)
serName - Name of the service
cat - The catefory of the service.
startip - Start ip of the service
endip - End ip of the service
ServiceId - Id of the service.
oldSerId - Old Id of the service(when edit). 		http://localhost:8060/api/json/cloudcontrol/handleCloudRepositoryChanges?action=add&serName=uy&cat=Image+Editing&startip=1.1.1.1&endip=2.2.2.2&apiKey=ecf7691a575255636e2c28bba73ae213
getCloudCategoryListDetails GET To get the category list of the repository NIL http://localhost:8060/api/json/cloudcontrol/getCloudCategoryListDetails?apiKey=ecf7691a575255636e2c28bba73ae213
getCloudControlRepositoryTableData GET To get the table data in the repository NIL http://localhost:8060/api/json/cloudcontrol/getCloudControlRepositoryTableData?apiKey=ecf7691a575255636e2c28bba73ae213

設定（除外ホスト）

REST API Method Description Parameters Sample URL
getIntranetTableData** GET To get the data in intranet settings and exclude hosts. selectedtab - The tab that is selected(intranet/exclude hosts) http://localhost:8060/api/json/fwasettings/getIntranetTableData?selectedtab=ExcludeHost&apiKey=ecf7691a575255636e2c28bba73ae213
getResourcesTableInfo** GET To get the list of devices added in the fwanalyzer NIL http://localhost:8060/api/json/fwaglobal/getResourcesTableInfo?apiKey=ecf7691a575255636e2c28bba73ae213
getDeviceIntranetSettings** GET To get the intranet settings for the device selectedTab - The tab that is selected(intranet/exclude hosts)
devName - Name of the device.
devId - Id of the device 		http://localhost:8060/api/json/fwasettings/getDeviceIntranetSettings?devId=-1&selectedTab=ExcludeHost&apiKey=ecf7691a575255636e2c28bba73ae213

設定（ユーザー名-IPマッピング）

REST  API Method Description Parameters Sample URL
getIPToUserMappingDetails GET To get the currently configured user name and ip mapping details NIL http://localhost:8060/api/json/fwasettings/getIPToUserMappingDetails?apiKey=ecf7691a575255636e2c28bba73ae213
getUserIPLookupServersMappings GET For getting the mapping between server and user. configType - Type of the configuration.
server - Type of the server. 		http://localhost:8060/api/json/fwasettings/getUserIPLookupServersMappings?configType=manual&server=zxczxc&apiKey=ecf7691a575255636e2c28bba73ae213
getADToResourceMapping GET To get the resources mapped with the selected AD. ADServerName - Name of the ad server http://localhost:8060/api/json/fwasettings/getADToResourceMapping?ADServerName=adap-dc2&apiKey=ecf7691a575255636e2c28bba73ae213

設定（除外条件）

REST  API Method Description Parameters Sample URL
listExcludeCriteria GET To get added exclude criteria list NIL http://localhost:8060/api/json/fwasettings/listExcludeCriteria?apiKey=ecf7691a575255636e2c28bba73ae213

設定（チェックポイント）

REST  API Method Description Parameters Sample URL
getCheckPointTableData GET To get added Checkpoint firewall details NIL http://localhost:8060/api/json/fwasettings/getCheckPointTableData?apiKey=ecf7691a575255636e2c28bba73ae213

設定（ログファイルのインポート）

REST  API Method Description Parameters Sample URL
getImportedLogTableData GET To get Imported log file details NIL http://localhost:8060/api/json/fwasettings/getImportedLogTableData?apiKey=ecf7691a575255636e2c28bba73ae213
getLocalImportOptions** GET To get Local import options NIL http://localhost:8060/api/json/fwasettings/getLocalImportOptions?apiKey=ecf7691a575255636e2c28bba73ae213

設定（装置ルール）

REST  API Method Description Parameters Sample URL
listDC GET To get added device rule details NIL http://localhost:8060/api/json/fwacompliance/listDC?apiKey=ecf7691a575255636e2c28bba73ae213
listVDOM GET To get vdom firewall details of a device rule ddid - Device rule id http://localhost:8060/api/json/fwacompliance/listVDOM?ddid=1&apiKey=ecf7691a575255636e2c28bba73ae213

設定（認証プロファイル）

REST  API Method Description Parameters Sample URL
listDIP GET To get credential profiles list NIL http://localhost:8060/api/json/fwacompliance/listDIP?apiKey=ecf7691a575255636e2c28bba73ae213
dipPrerender GET To get device rule supported device list   NIL http://localhost:8060/api/json/fwacompliance/dipPrerender?apiKey=ecf7691a575255636e2c28bba73ae213

設定（アラートプロファイル）

REST  API Method Description Parameters Sample URL
getAlarmTabs GET To get the alarmprofile configured timeFrame - Time Range for the alarms.
DateRange - Whether date is configured or not. 		http://localhost:8060/api/json/fwaalarms/getAlarmTabs?timeFrame=LastDay&DateRange=false&apiKey=ecf7691a575255636e2c28bba73ae213
viewAlarmProfileDetails GET To view the alarms generated for a particular profile alarmID - Id of the alarm profile.
alarmType - Type of the alarm profile(alert/anomaly/bandwidth)
alarmName - Name of the alarm profile.
page - Page number
rows - Number of Rows to be displayed.
sortByColumn - Based on which column the sorting is to be done.
sortByType - Type of sort(asc/desc)
pdfReqFrom - Where the req is from for generating pdf(used in phantom)
exportFWAV2WidData - Whether the export is selected or not(used in phantom).
header - Header for the report.
title1 - Title 1 for the report.
value1 - Value for the title1.
title2 - Title 2 for the report.
value2 - Value for the title 2		 http://localhost:8060/api/json/ fwaalarms/viewAlarmProfileDetails?alarmID=301&alarmType=Alert&alarmName=testalertnormal&rows=50&page=1&sortByColumn=Starton&sortByType=desc&apiKey= ecf7691a575255636e2c28bba73ae213

設定（SNMP設定）

REST API Method Description Parameters Sample URL
listSnmpDevices GET List the snmp configured devices NIL http://localhost:8060/api/json/v2/livetraffic/listSnmpDevices?apiKey=ecf7691a575255636e2c28bba73ae213
getSnmpDetails GET To get the SNMP details configured resId - resourceID
action - action performed(edit) 		http://localhost:8060/api/json/v2/livetraffic/getSnmpDetails?apiKey=ecf7691a575255636e2c28bba73ae213
       概要
